SPPC POWER CONNECTORS

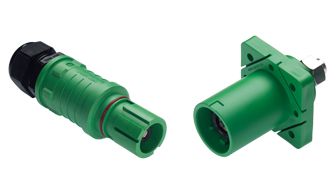

SPPC PWL - up to 750A


PWL Connectors have become widely adopted in a

diverse range of applications and industries.

• 400A / 750A, 1.000V

• IP67 when mated (according EN 60529)

• IP2x finger protected contacts

• Intermatable with any Powerlock and Powerline

compliant connectors

• KSPC: keyed single pole connector, individual

keyways to prevent connection errors







SPPC HK - compact version



HOOK Connectors have been developed as a PWL

compact series.

• 250A / 400A, 1.250V

• Reduced flange option

• IP67 when mated (according EN 60529)

• IP2x finger protected contacts

• Intermatable with any Vanten compliant connectors

• KSPC: keyed single pole connector, individual

keyways to prevent connection errors

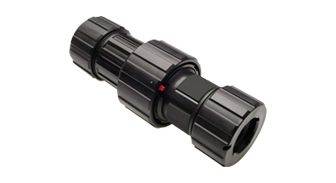

SPPC LJP -  Lug Joint Protector



LJP is a safe and efficient means to make temporary

connection/extensions of single core power cables that

are pre-terminated with copper lug terminals.

• Up to 780A, 1.000V

• IP67 when mated (according EN 60529)

• Accepts 120mm2, 185mm2, 240mm2 and 30mm2

lugs with holes size 12mm.

• Different lug sizes can be assembled in the same

unit using the special accessories





CATALOG
